Vision® Aluminum Cargo Trailer

Bed Width: 6′-8.5′
Bed Length: 10′-24′
GVWR: 2,990-10,000 lbs
GAWR: 3,500-5,000 lbs/axle
LOOK Vision Aluminum Enclosed Cargo Trailer Front View

All Aluminum Construction

Provides superior strength, corrosion resistance, and a lightweight design for efficient towing and long life.

VHB Bonded, Screwless .030" Aluminum Exterior

Delivers a sleek, modern look with increased durability and reduced maintenance.

High-Performance Engineered Wood Walls and Flooring

Offers exceptional strength and impact resistance for heavy-duty use.

Sidewall Airflow Vents

Promote interior ventilation to reduce moisture buildup and protect your cargo.

Vision® Aluminum Cargo Trailer

The Vision® Aluminum Cargo Trailer is built for secure, stylish hauling with a lightweight aluminum frame and rugged construction. This enclosed trailer features a seamless aluminum roof, VHB bonded exterior, and high-performance wood walls and flooring. With a sloped V-nose for improved aerodynamics, easy-lube drop spring axles, and customizable rear door options, it delivers strength and versatility, making it perfect for any cargo transport need.

Key Benefits

All Aluminum Construction

Provides superior strength, corrosion resistance, and a lightweight design for efficient towing and long life.

VHB Bonded, Screwless .030" Aluminum Exterior

Delivers a sleek, modern look with increased durability and reduced maintenance.

High-Performance Engineered Wood Walls and Flooring

Offers exceptional strength and impact resistance for heavy-duty use.

Sidewall Airflow Vents

Promote interior ventilation to reduce moisture buildup and protect your cargo.

Explore This Trailer

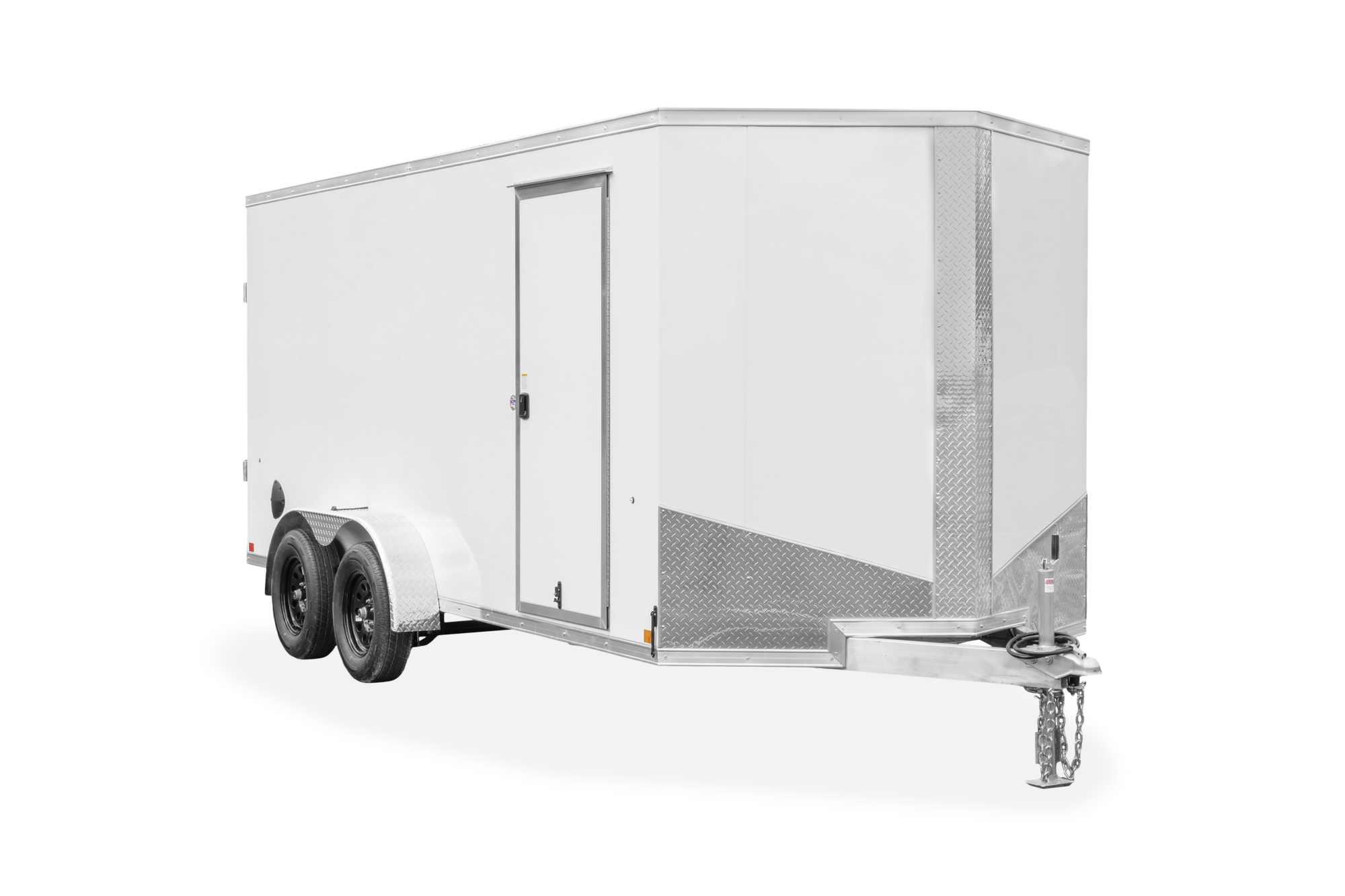

LOOK Vision Aluminum Enclosed Cargo Trailer Front View

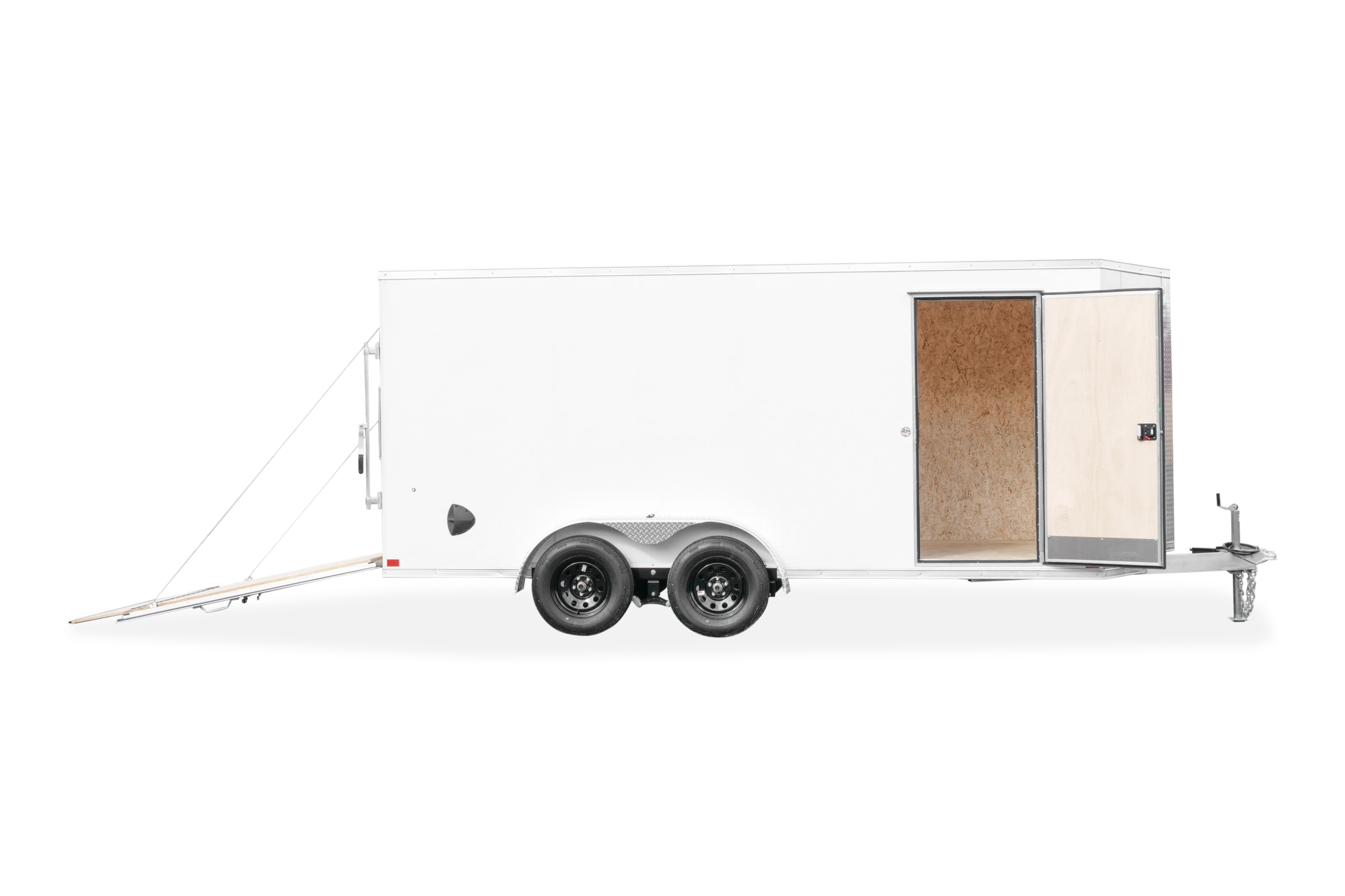

LOOK Vision Aluminum Enclosed Cargo Trailer Side View

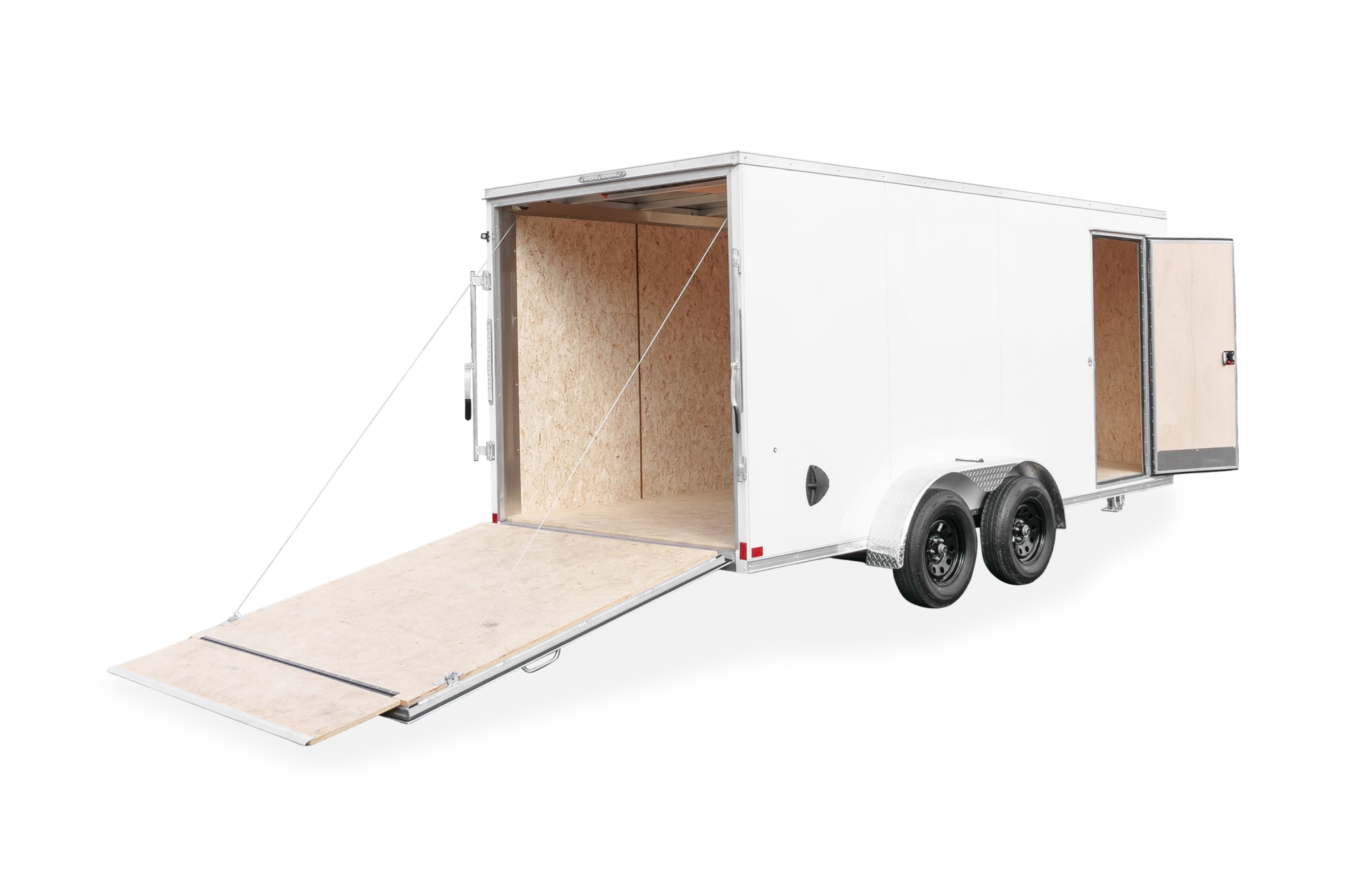

LOOK Vision Aluminum Cargo Trailer Rear View

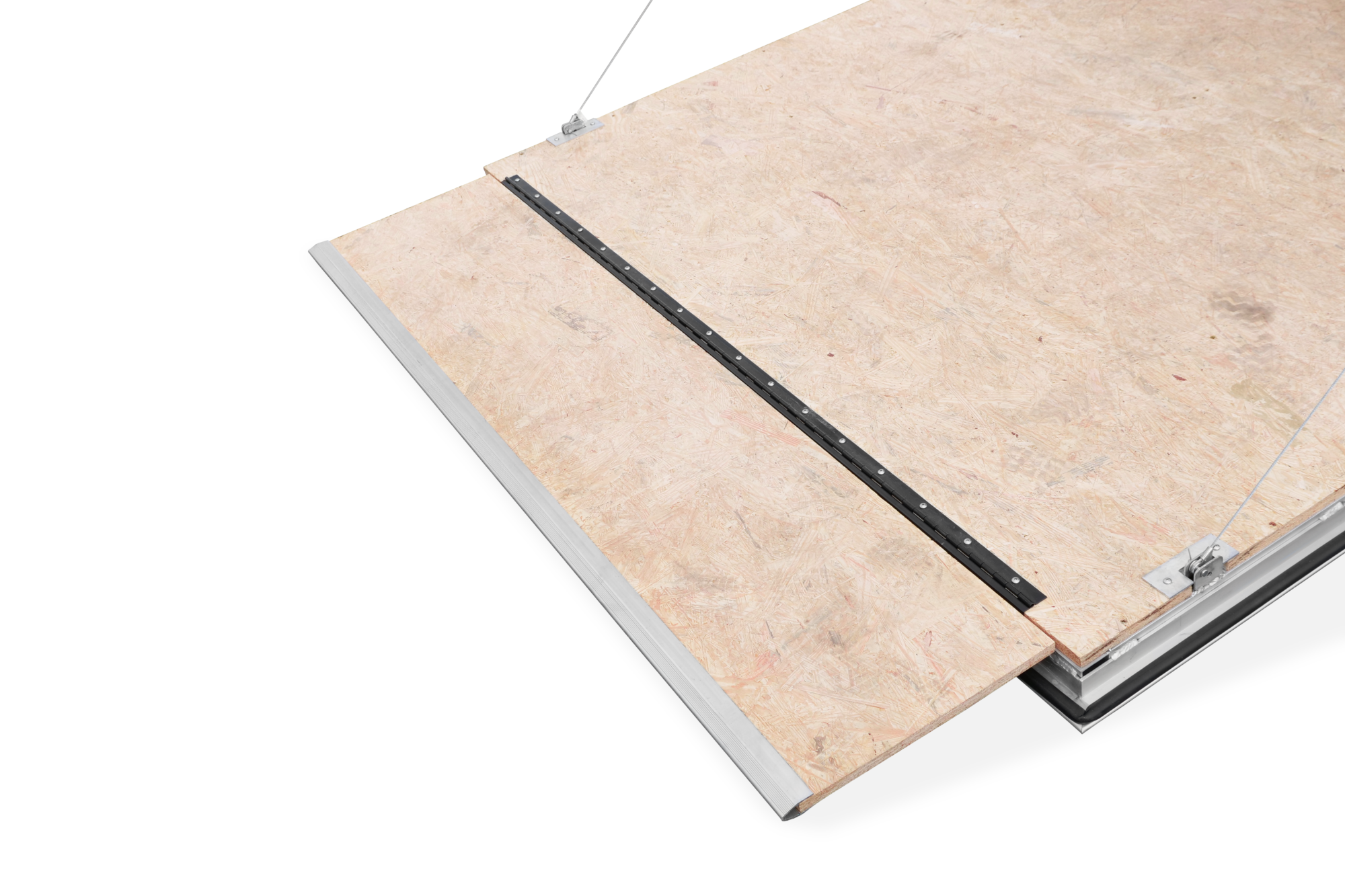

LOOK Vision Aluminum Cargo Trailer Ramp Flap

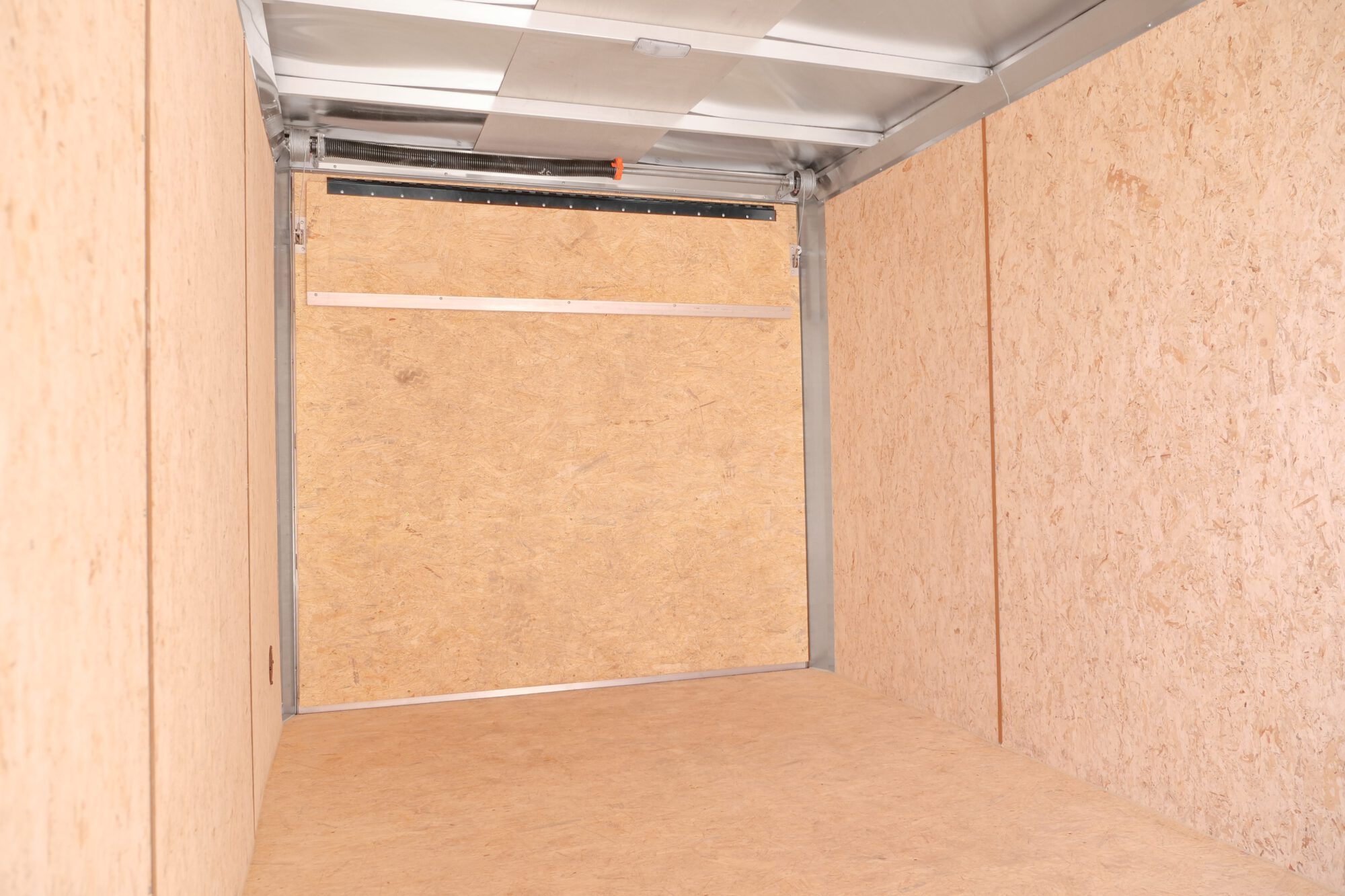

LOOK Vision Aluminum Cargo Trailer Interior View

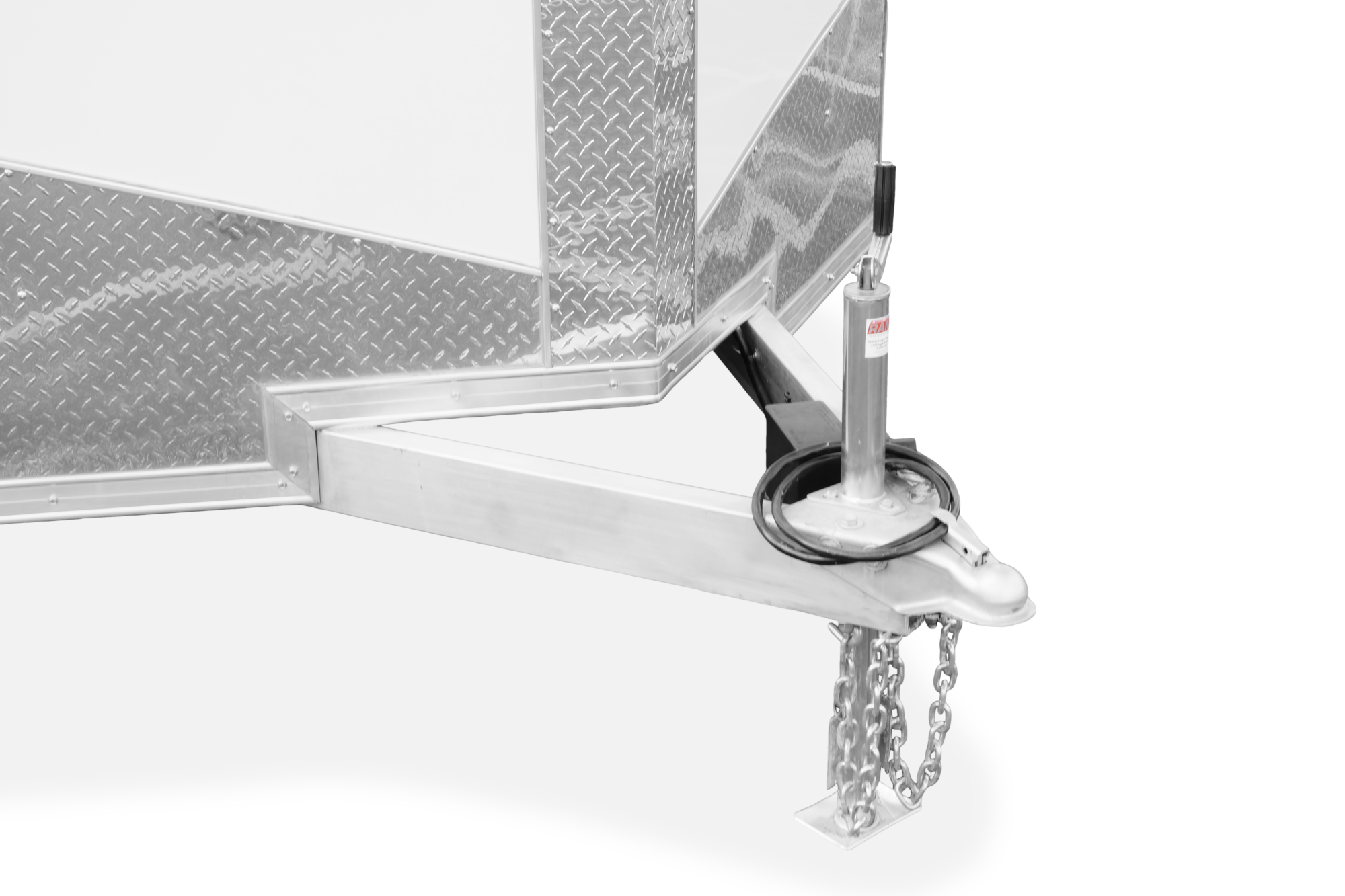

LOOK Vision Aluminum Cargo Trailer Tongue

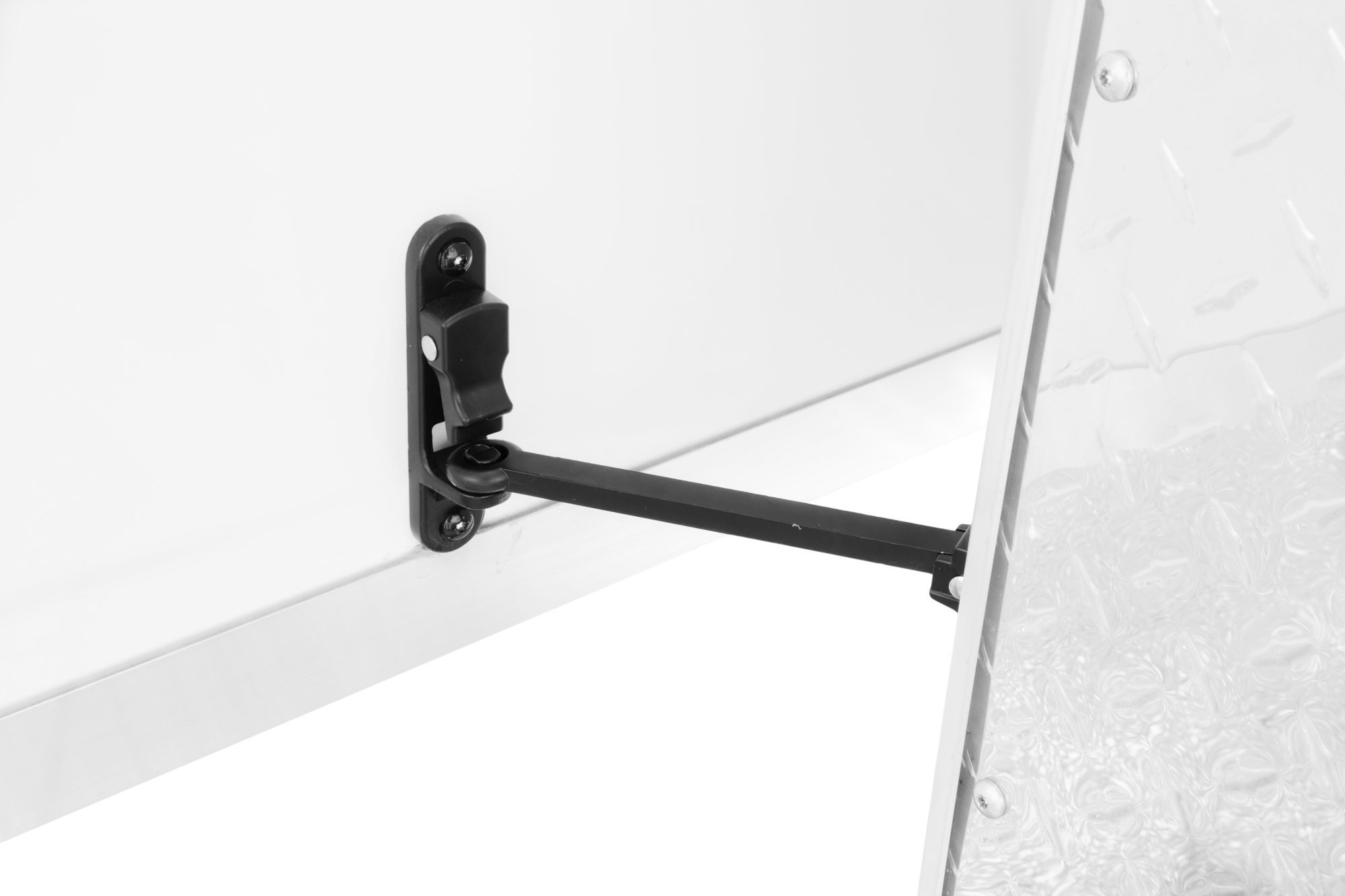

LOOK Vision Aluminum Cargo Trailer Door Holdback

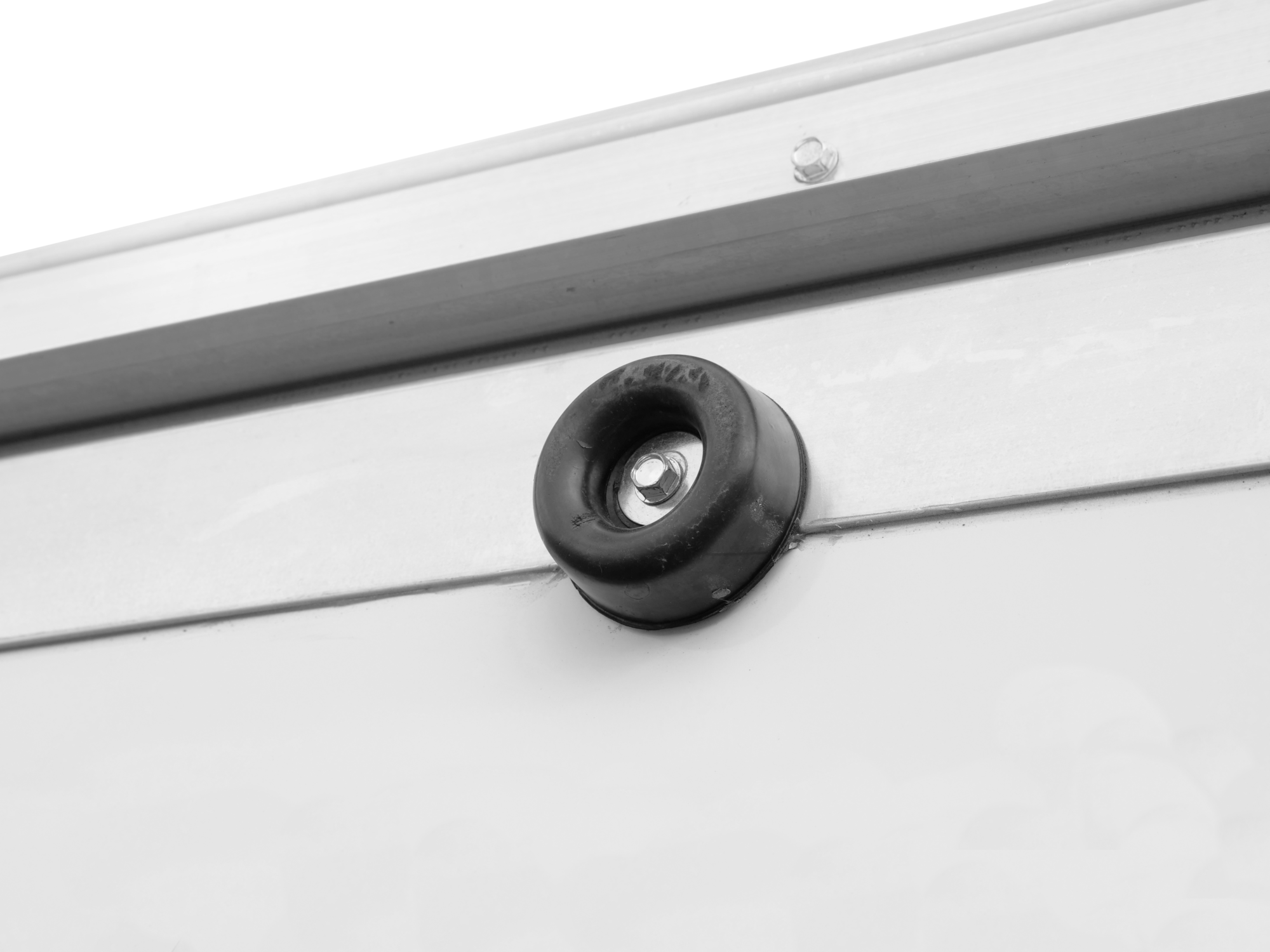

LOOK Vision Aluminum Enclosed Cargo Trailer Bumpers

Model Color Options:

White

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a LOOK Vision® Aluminum Cargo Trailer?

Overview

The Vision® Aluminum Cargo Trailer offers premium durability with a lightweight aluminum build, perfect for hauling with style. Designed for versatility, this enclosed trailer features a seamless aluminum roof, VHB bonded exterior, and high-performance wood walls and floors. Ideal for secure transport, it’s built tough with an aluminum tube frame and drop spring axles. Customize your cargo trailer with ramp or barn-style doors and experience unmatched reliability.

Frame and Construction

The Vision® Aluminum Cargo Trailer is engineered for strength with aluminum tube frame rails, crossmembers, tongue rails, and 16” on-center wall studs. The sloped V-nose profile improves aerodynamics, while the seamless aluminum roof offers long-lasting protection. Easy-lube drop spring axles ensure smooth towing, and the ATP nose cap and 24” stoneguard provide added front-end durability.

Exterior Features

This enclosed trailer boasts a VHB bonded, screwless .030” aluminum exterior for a sleek, modern look. Choose between a rear ramp with a 12” extension flap or barn-style double doors. Sidewall airflow vents maintain interior ventilation, while LED taillights with integrated reverse lights enhance safety. Color-matching rear corner wraps and a cast aluminum side door holdback complete the polished exterior.

Interior Features

Inside, the Vision® Aluminum Cargo Trailer offers high-performance engineered wood walls and 3/4” engineered wood flooring for maximum strength. LED interior lights with a wall switch keep your workspace illuminated. The SOLIDOOR™ side entry door, crafted with CNC precision-cut aluminum extrusions and a laminated core, offers durable, easy access. Every feature is designed for convenience, making this cargo trailer a reliable, enclosed hauling solution.

Models

6' x 14'

Vision Flat Top V-Nose 3K
2990 lbs
Model #
K-VIA7214-030
GVWR (lbs)
2990 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

6' x 10'

Vision Flat Top V-Nose 3K
2990 lbs
Model #
K-VIA7210-030
GVWR (lbs)
2990 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

6' x 12'

Vision Flat Top V-Nose 3K
2990 lbs
Model #
K-VIA7212-030
GVWR (lbs)
2990 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

6' x 12'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA7212-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

7' x 16'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA8416-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

7' x 18'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA8418-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

7' x 14'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA8414-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

7.5' x 12'

Vision Flat Top V-Nose 10K
10000 lbs
Model #
K-VIA9012-100
GVWR (lbs)
10000 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

7.5' x 20'

Vision Flat Top V-Nose 10K
10000 lbs
Model #
K-VIA9020-100
GVWR (lbs)
10000 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

7.5' x 16'

Vision Flat Top V-Nose 10K
10000 lbs
Model #
K-VIA9016-100
GVWR (lbs)
10000 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

7.5' x 14'

Vision Flat Top V-Nose 10K
10000 lbs
Model #
K-VIA9014-100
GVWR (lbs)
10000 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

7.5' x 18'

Vision Flat Top V-Nose 10K
10000 lbs
Model #
K-VIA9018-100
GVWR (lbs)
10000 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

7.5' x 16'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA9016-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

7.5' x 18'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA9018-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

7.5' x 20'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA9020-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

7.5' x 14'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA9014-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

8.5' x 24'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA10224-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

8.5' x 16'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA10216-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

8.5' x 20'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA10220-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

8.5' x 18'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA10218-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

8.5' x 22'

Vision Flat Top V-Nose 7K
7000 lbs
Model #
K-VIA10222-070
GVWR (lbs)
7000 lbs
GAWR (lbs/axle)
3500 lbs/axle
Wheels
15″, 5-Hole Steel

8.5' x 22'

Vision Flat Top V-Nose 10K
9900 lbs
Model #
K-VIA10222-100
GVWR (lbs)
9900 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

8.5' x 18'

Vision Flat Top V-Nose 10K
9900 lbs
Model #
K-VIA10218-100
GVWR (lbs)
9900 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

8.5' x 24'

Vision Flat Top V-Nose 10K
9900 lbs
Model #
K-VIA10224-100
GVWR (lbs)
9900 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

8.5' x 20'

Vision Flat Top V-Nose 10K
9900 lbs
Model #
K-VIA10220-100
GVWR (lbs)
9900 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

8.5' x 16'

Vision Flat Top V-Nose 10K
9900 lbs
Model #
K-VIA10216-100
GVWR (lbs)
9900 lbs
GAWR (lbs/axle)
5000 lbs/axle
Wheels
15″, 6-Hole Steel

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
