Rated: Best

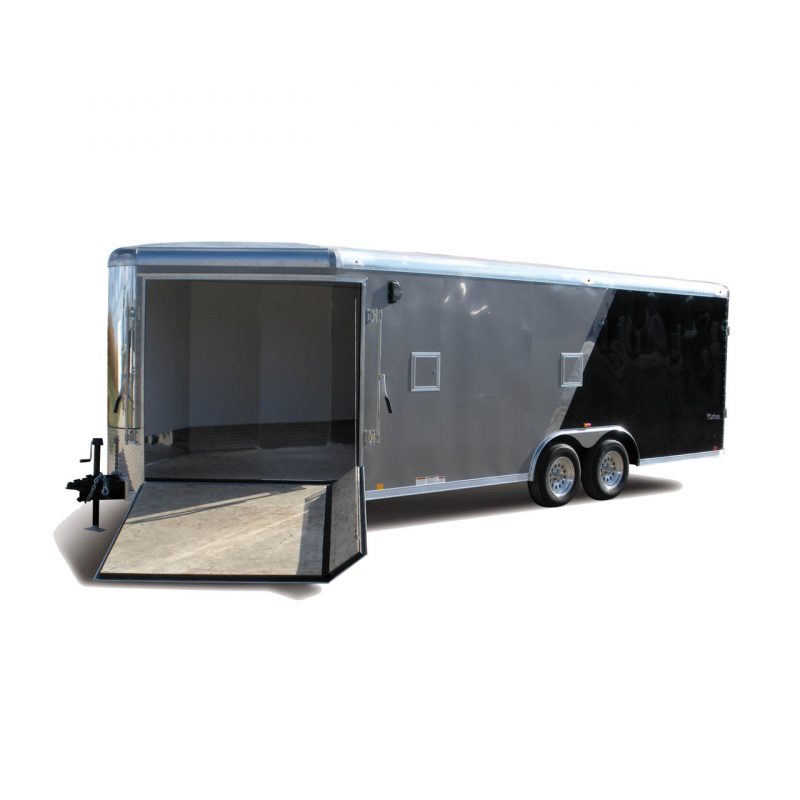

Vision® Puresport Motorsport Trailer

High-end, All-aluminum

Standard Features

  • Flat Top
  • 60" Aero Wedge with Radius Nose
  • 16" On-Center Crossmembers
  • 3/4" Nudo Flooring (Trailer
  • Ramp & Extension)
  • Screwless Exterior
  • Max Tongue Extension
  • 24" Tall Straight ATP Stone Guard
  • Seamless Aluminum Roof
  • 0.030 Aluminum Exterior
  • 14" x 14" Fuel Door
  • 9mm White Vinyl Walls
  • Vinyl H-Molding on Walls

Standard Colors

Indigo Blue
Charcoal
White
Silver
Champagne
Black
Red
Pewter

Optional Colors

Two-Tone
Yellow
Orange
Emerald Green

Vision® Puresport Motorsport Trailer by LOOK® Trailers. Vision® Motorsport trailers are categorized based on their size, ranging from 8.5×17 to 8.5×37. Each model has its own set of features and specifications.

The standard features of the trailers include a flat top with a 60″ Aero Wedge and a radius nose. ​ The trailers have 16″ on-center crossmembers, tube sidewalls, and a 78″ interior height. ​ The roof bows are also 16″ on-center. ​ The trailers are equipped with a 2-5/16″ adjustable ball coupler, safety chains, and a 5K drop leg jack. ​ They also have extruded aluminum fender flares, 45-degree down torsion brake axles, and a spread axle configuration. ​ The trailers come with equalizer brackets, superlube hubs, and drive-over wheelboxes. ​

The interior of the Motorsport trailers features 9mm white vinyl walls, vinyl H-molding on the walls, and a .045″ ATP kickplate. ​ The flooring is made of 3/4″ Nudo flooring, which is used for the trailer, ramp, and extension. ​ The trailers have automotive undercoating and a white vinyl ceiling with white aluminum coves. ​ They also have (4) 5K D-rings and Xtreme slide track with (8) D-rings for securing cargo. The trailers are equipped with a 7-way electric plug and a breakaway battery with a switch. ​ They have bullet LED marker and clearance lights, as well as slimline LED tail lights with an integrated backup light. ​ The trailers also have loading lights under the spoiler and over the front ramp, both with switches. ​ Additionally, they have (2) 11in deluxe LED dome lights with a switch. ​ The exterior of the trailers features a 0.030 aluminum exterior, brite aluminum rear hoop, and a white, black, silver, pewter, or charcoal screwless exterior. ​ They also have a 24″ tall straight ATP stone guard, brite nose cap, and 2.5″ top trim and 3″ bottom trim. ​ The trailers have a seamless aluminum roof and a 9″ deep rear flare with a brite aluminum ceiling. ​ They also have an interior recessed step, cast aluminum door holdback, and a rear ramp door with spring assist. ​ The ramp door has a capacity of 4000 lbs and is equipped with traction bars. ​ The trailers also have a wrap-around V-nose ramp door and a 14″ x 14″ fuel door. ​ They are equipped with sidewall vents for ventilation. ​

The document also provides a table that lists the models of trailers in the 8.5×17 to 8.5×25 size range. Each model is identified by a model number. The table also provides information about the GVWR (Gross Vehicle Weight Rating) of each model. The GVWR ranges from 7000 lbs to 14000 lbs. The table also provides information about the mainframe, beavertail, tube tongue, tires, wheels, side door, and safety features of each model. ​

There are additional tables for the 8.5×27 to 8.5×37 size range, providing similar information about the models in this range. ​

In summary, the document provides detailed information about the standard features and specifications of various models of trailers. The trailers have a range of sizes and come with a variety of features to meet different needs. The tables provide a convenient way to compare the different models and their specifications.
